Coverity is an enterprise-grade static application security testing (SAST) platform known for its deep analysis capabilities and accuracy in detecting complex vulnerabilities.

Now operating under Black Duck Software, Coverity has been a pioneer in static analysis since its founding in 2002 and remains a top choice for organizations with large, complex codebases requiring thorough security analysis.

What is Coverity?

Coverity performs deep static analysis that examines source code to find security vulnerabilities, quality defects, and compliance issues without executing the code.

The platform uses sophisticated techniques including interprocedural dataflow analysis, path-sensitive analysis, and abstract interpretation to detect issues that simpler tools miss.

Originally developed from research at Stanford University, Coverity gained recognition for finding critical bugs in open-source projects and has since evolved into a comprehensive enterprise security platform.

The tool is particularly strong in analyzing C/C++ codebases, embedded systems, and safety-critical applications where the consequences of undetected vulnerabilities can be severe.

After the acquisition of Synopsys Software Integrity Group, Coverity now operates independently under Black Duck Software, continuing to receive investment in its core analysis engine while integrating more closely with Black Duck SCA for comprehensive application security.

Key Features

Deep Static Analysis Engine

Coverity’s analysis goes beyond pattern matching:

Interprocedural analysis follows code paths across function boundaries
Path-sensitive analysis understands conditions and constraints along execution paths
Context-sensitive analysis tracks values through different calling contexts
Whole-program analysis considers the entire codebase for accurate results
Abstract interpretation models program behavior mathematically

Comprehensive Vulnerability Detection

Coverage for critical security and quality issues:

Buffer overflows and memory corruption
Use-after-free and double-free errors
Null pointer dereferences
Resource leaks (memory, file handles, locks)
SQL injection and command injection
Cross-site scripting (XSS)
Insecure cryptography
Authentication and authorization flaws
Concurrency issues (race conditions, deadlocks)
Integer overflows and underflows

Multi-Language Support

Comprehensive coverage across 22+ languages:

Systems languages: C, C++, CUDA, Fortran
Enterprise languages: Java, C#, VB.NET, Scala, Kotlin
Web languages: JavaScript, TypeScript, PHP, Ruby, Python
Mobile languages: Swift, Objective-C, Kotlin
Specialized: Apex (Salesforce), Go, ASP.NET

Incremental Analysis

Optimize scan times in CI/CD pipelines:

Analyze only changed files and their dependencies
Full analysis on demand or scheduled
Differential results showing new vs. existing issues
Integration with source control for change detection

Installation and Setup

Coverity Analysis Platform

The on-premises deployment includes:

# Download Coverity Analysis from Black Duck customer portal
# Extract and configure the installation

tar -xzf cov-analysis-linux64-*.tar.gz
cd cov-analysis-linux64-*

# Configure license
./bin/cov-configure --license /path/to/license.dat

# Configure compilers (example for GCC)
./bin/cov-configure --gcc
./bin/cov-configure --java
./bin/cov-configure --javascript

# Verify configuration
./bin/cov-configure --list-configured-compilers

Build Integration

Coverity intercepts your build process to understand code structure:

# Capture build (C/C++ example with make)
cov-build --dir cov-int make clean all

# Capture build (Java with Maven)
cov-build --dir cov-int mvn clean package

# Capture build (Gradle)
cov-build --dir cov-int ./gradlew clean build

# Capture build (.NET)
cov-build --dir cov-int msbuild /t:Clean,Build MyProject.sln

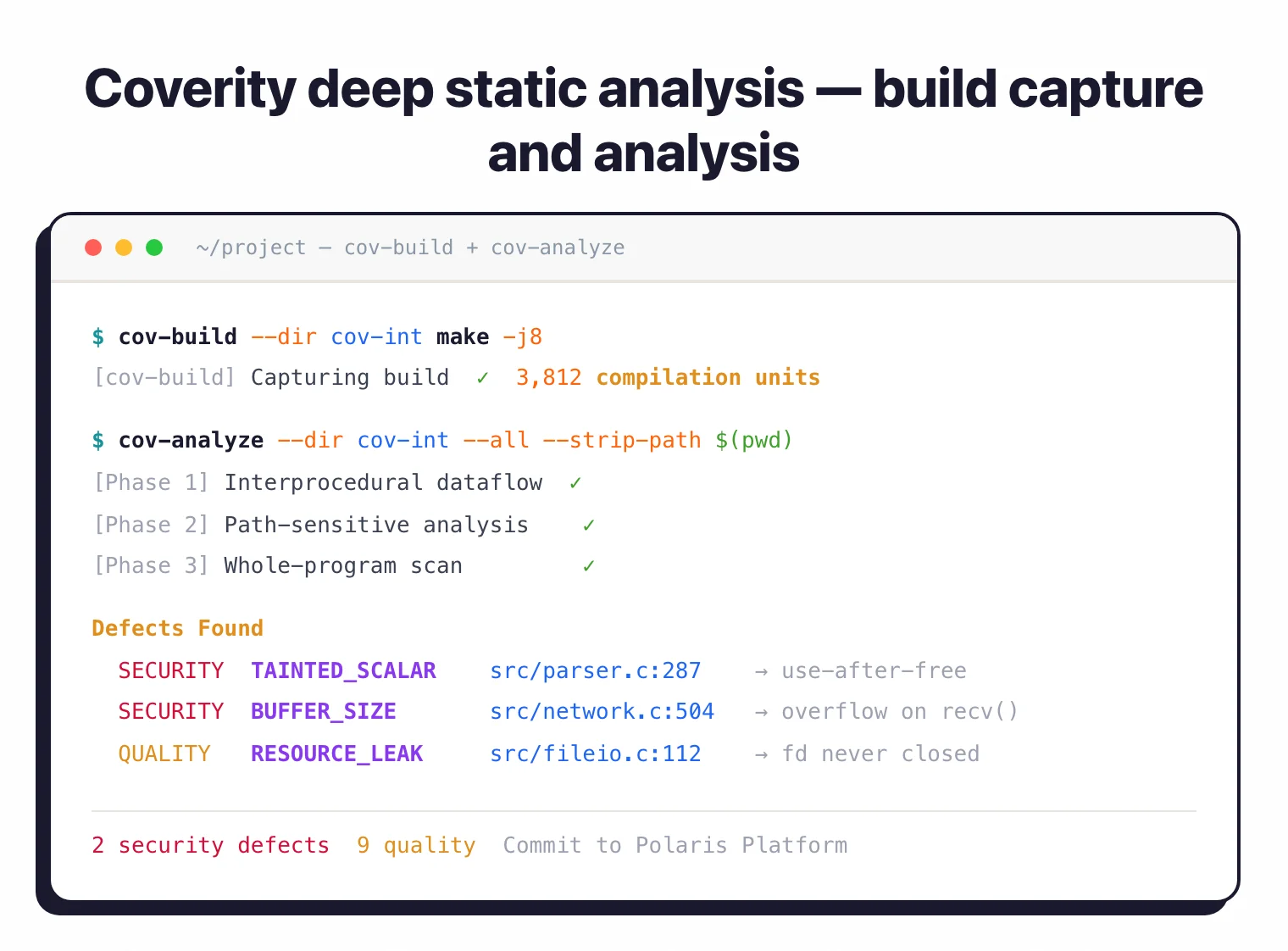

Analysis and Commit

# Run analysis on captured build
cov-analyze --dir cov-int \
  --all \
  --aggressiveness-level high \
  --enable-constraint-fpp \
  --enable-fnptr \
  --enable-virtual

# Commit results to Coverity Connect server
cov-commit-defects --dir cov-int \
  --url https://coverity-server.example.com:8443 \
  --user admin \
  --password $COVERITY_PASSPHRASE \
  --stream "MyProject-main"

Configuration File

Create a coverity.conf for project-specific settings:

# coverity.conf
project:
  name: my-application
  stream: my-application-main

analysis:
  aggressiveness: high
  checkers:
    - BUFFER_SIZE
    - FORWARD_NULL
    - RESOURCE_LEAK
    - SQL_INJECTION
    - XSS
    - HARDCODED_CREDENTIALS

build:
  capture:
    - make clean all
  incremental: true

commit:
  url: https://coverity-server.example.com:8443
  ssl_verify: true

Integration

GitHub Actions

name: Coverity Analysis

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]
  schedule:
    - cron: '0 2 * * 1'  # Weekly full scan

jobs:
  coverity:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout code
        uses: actions/checkout@v4
        with:
          fetch-depth: 0

      - name: Set up JDK
        uses: actions/setup-java@v4
        with:
          distribution: 'temurin'
          java-version: '17'

      - name: Download Coverity
        run: |
          curl -L \
            -u "${{ secrets.COVERITY_USER }}:${{ secrets.COVERITY_PASSPHRASE }}" \
            -o coverity.tar.gz \
            "https://${{ secrets.COVERITY_SERVER }}/downloadFile.htm?fn=cov-analysis-linux64.tar.gz"
          tar -xzf coverity.tar.gz
          echo "$PWD/cov-analysis-linux64-*/bin" >> $GITHUB_PATH

      - name: Build with Coverity
        run: |
          cov-build --dir cov-int mvn clean package -DskipTests

      - name: Run Coverity Analysis
        run: |
          cov-analyze --dir cov-int \
            --all \
            --aggressiveness-level high

      - name: Commit Results
        run: |
          cov-commit-defects --dir cov-int \
            --url "https://${{ secrets.COVERITY_SERVER }}" \
            --user "${{ secrets.COVERITY_USER }}" \
            --password "${{ secrets.COVERITY_PASSPHRASE }}" \
            --stream "${{ github.repository }}-${{ github.ref_name }}"

      - name: Check for New Defects
        run: |
          # Query for new high-impact defects
          curl -s -u "${{ secrets.COVERITY_USER }}:${{ secrets.COVERITY_PASSPHRASE }}" \
            "https://${{ secrets.COVERITY_SERVER }}/api/v2/defects?stream=${{ github.repository }}-${{ github.ref_name }}&impact=High&status=New" \
            | jq '.totalCount' \
            | xargs -I {} test {} -eq 0

GitLab CI

stages:
  - build
  - security

coverity-scan:
  stage: security
  image: ubuntu:22.04
  variables:
    COVERITY_STREAM: "${CI_PROJECT_NAME}-${CI_COMMIT_REF_NAME}"
  before_script:
    - apt-get update && apt-get install -y curl openjdk-17-jdk maven
    - |
      curl -L \
        -u "${COVERITY_USER}:${COVERITY_PASSPHRASE}" \
        -o coverity.tar.gz \
        "https://${COVERITY_SERVER}/downloadFile.htm?fn=cov-analysis-linux64.tar.gz"
      tar -xzf coverity.tar.gz
      export PATH="${PWD}/cov-analysis-linux64-2024.3.0/bin:${PATH}"
  script:
    - cov-build --dir cov-int mvn clean package -DskipTests
    - cov-analyze --dir cov-int --all --aggressiveness-level high
    - |
      cov-commit-defects --dir cov-int \
        --url "https://${COVERITY_SERVER}" \
        --user "${COVERITY_USER}" \
        --password "${COVERITY_PASSPHRASE}" \
        --stream "${COVERITY_STREAM}"
  artifacts:
    paths:
      - cov-int/output/analysis-log.txt
    expire_in: 7 days
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
      when: manual

Jenkins Pipeline

pipeline {
    agent any

    environment {
        COVERITY_SERVER = credentials('coverity-server')
        COVERITY_USER = credentials('coverity-user')
        COVERITY_PASSPHRASE = credentials('coverity-passphrase')
        COVERITY_STREAM = "${JOB_NAME}-${BRANCH_NAME}"
    }

    stages {
        stage('Checkout') {
            steps {
                checkout scm
            }
        }

        stage('Setup Coverity') {
            steps {
                sh '''
                    curl -L \
                      -u "${COVERITY_USER}:${COVERITY_PASSPHRASE}" \
                      -o coverity.tar.gz \
                      "https://${COVERITY_SERVER}/downloadFile.htm?fn=cov-analysis-linux64.tar.gz"
                    tar -xzf coverity.tar.gz
                '''
            }
        }

        stage('Build with Coverity') {
            steps {
                sh '''
                    export PATH="${WORKSPACE}/cov-analysis-linux64-*/bin:${PATH}"
                    cov-build --dir cov-int mvn clean package -DskipTests
                '''
            }
        }

        stage('Analyze') {
            steps {
                sh '''
                    export PATH="${WORKSPACE}/cov-analysis-linux64-*/bin:${PATH}"
                    cov-analyze --dir cov-int \
                      --all \
                      --aggressiveness-level high \
                      --security
                '''
            }
        }

        stage('Commit Results') {
            steps {
                sh '''
                    export PATH="${WORKSPACE}/cov-analysis-linux64-*/bin:${PATH}"
                    cov-commit-defects --dir cov-int \
                      --url "https://${COVERITY_SERVER}" \
                      --user "${COVERITY_USER}" \
                      --password "${COVERITY_PASSPHRASE}" \
                      --stream "${COVERITY_STREAM}"
                '''
            }
        }

        stage('Quality Gate') {
            steps {
                script {
                    def defects = sh(
                        script: """
                            curl -s -u '${COVERITY_USER}:${COVERITY_PASSPHRASE}' \
                              "https://${COVERITY_SERVER}/api/v2/defects?stream=${COVERITY_STREAM}&impact=High&status=New" \
                              | jq '.totalCount'
                        """,
                        returnStdout: true
                    ).trim().toInteger()

                    if (defects > 0) {
                        error("Found ${defects} new high-impact defects")
                    }
                }
            }
        }
    }
}

When to Use Coverity

Coverity is the right choice for organizations that:

Have large, complex codebases especially in C/C++ or mixed-language environments
Require deep analysis accuracy with low false positive rates
Build safety-critical systems in automotive, medical, aerospace, or embedded
Need compliance support for standards like MISRA, CERT, and CWE
Want on-premises deployment with full control over analysis infrastructure
Already use Black Duck SCA and want unified vulnerability management

Consider alternatives if you:

Need cloud-native SaaS without on-premises infrastructure
Have smaller codebases that don’t require enterprise tooling
Need faster time-to-value with lighter-weight scanning

Coverity integrates with Black Duck SCA for comprehensive application security coverage, combining source code analysis with open-source component security in a unified platform.

Note: Formerly Synopsys Software Integrity Group. Acquired by Clearlake Capital and Francisco Partners in 2024, now operating independently as Black Duck Software.
