ZAP (Zed Attack Proxy)

ZAP (Zed Attack Proxy) is a widely used open-source web application security scanner. It’s free, Apache 2.0 licensed, and has no paid tiers or feature restrictions.

With 14,700+ GitHub stars, 2,500+ forks, and 229+ contributors, ZAP is a go-to free DAST tools choice for security teams, pentesters, and developers. Version 2.17.0 shipped in December 2025, written primarily in Java (73% of the codebase).

In September 2024, Checkmarx partnered with the ZAP project and hired all three project leaders — Simon Bennetts, Rick Mitchell, and Ricardo Pereira. ZAP remains free and open source. Checkmarx provides funding and resources for continued development.

What is ZAP?

ZAP sits between your browser and the target application as an intercepting proxy. All HTTP/HTTPS traffic passes through ZAP, where you can inspect, modify, and replay requests in real-time.

Beyond manual testing, ZAP includes automated scanning: a spider that crawls the application, an AJAX spider that uses a headless browser for JavaScript-heavy pages, a passive scanner that analyzes traffic without sending extra requests, and an active scanner that fires attack payloads at discovered endpoints.

The tool earned OWASP Flagship Project status and has been a GitHub Top 1000 project. The OWASP Testing Guide lists ZAP as a reference tool for dynamic application security testing.

Key Features

Intercepting Proxy

ZAP’s core is the man-in-the-middle proxy. Configure your browser to route traffic through ZAP and you can:

• Inspect every request and response in real-time
• Modify parameters, headers, and request bodies before they reach the server
• Replay requests with altered values (fuzzing, parameter tampering)
• Record authentication sequences for automated replay
• Decrypt SSL/TLS traffic with ZAP’s installed CA certificate

Spider and Active Scanner

ZAP combines two crawling approaches:

• Traditional Spider: Follows HTML links, submits forms, extracts URLs from JavaScript. Fast but misses dynamically generated content.
• AJAX Spider: Launches a headless browser (Firefox or Chrome) that executes JavaScript. Catches SPA routes, client-side navigation, and AJAX endpoints. Slower but more thorough for modern apps.

After crawling, the Active Scanner fires attack payloads against every discovered parameter and endpoint. The Passive Scanner runs continuously in the background, analyzing all proxied traffic for security issues without sending additional requests.

API Scanning

ZAP imports API definitions and tests each endpoint:

# Import and scan an OpenAPI spec
zap-api-scan.py -t https://example.com/openapi.json -f openapi

# GraphQL scanning
zap-api-scan.py -t https://example.com/graphql -f graphql

# SOAP WSDL scanning
zap-api-scan.py -t https://example.com/service.wsdl -f soap

Automation Framework

The YAML-based automation framework is how most teams integrate ZAP into CI/CD:

env:
  contexts:
    - name: "Default Context"
      urls:
        - "https://example.com"
      authentication:
        method: "form"
        parameters:
          loginUrl: "https://example.com/login"
          loginRequestData: "username={%username%}&password={%password%}"
      users:
        - name: "testuser"
          credentials:
            username: "test@example.com"
            password: "testpass123"

jobs:
  - type: spider
    parameters:
      context: "Default Context"
      user: "testuser"
      maxDuration: 5

  - type: spiderAjax
    parameters:
      context: "Default Context"
      maxDuration: 5

  - type: passiveScan-wait
    parameters:
      maxDuration: 10

  - type: activeScan
    parameters:
      context: "Default Context"
      user: "testuser"

  - type: report
    parameters:
      template: "traditional-html"
      reportFile: "zap-report.html"

Add-On Marketplace

ZAP’s marketplace has hundreds of extensions:

• Additional scan rules for specific technologies
• Import/export formats (HAR, OpenAPI, Postman)
• Reporting templates
• Authentication handlers
• Custom scripting (JavaScript, Python, Zest)

Installation

Desktop

Download from zaproxy.org/download/:

• Windows: MSI installer or portable ZIP
• macOS: DMG installer
• Linux: DEB, RPM, Snap (sudo snap install zaproxy --classic), or TAR.GZ

Docker

# Stable image
docker pull zaproxy/zap-stable

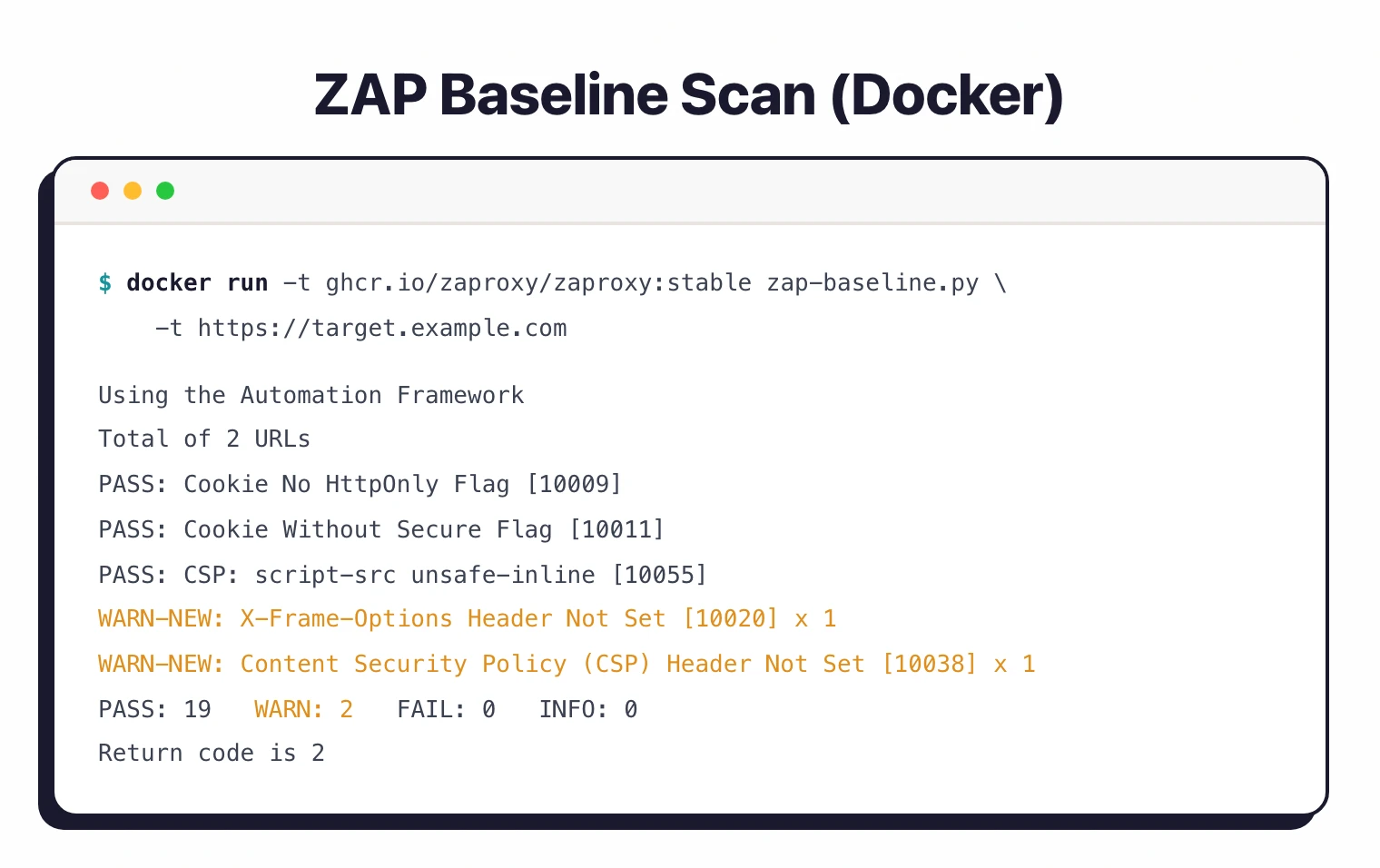

# Baseline scan (passive only, fast)
docker run -t zaproxy/zap-stable zap-baseline.py \
  -t https://example.com

# Full scan (active scanning)
docker run -t zaproxy/zap-stable zap-full-scan.py \
  -t https://example.com -j

# API scan
docker run -t zaproxy/zap-stable zap-api-scan.py \
  -t https://example.com/openapi.json -f openapi

# Daemon mode for API access
docker run -u zap -p 8080:8080 zaproxy/zap-stable \
  zap.sh -daemon -host 0.0.0.0 -port 8080

Package Managers

# macOS
brew install --cask zap

# Linux (Snap)
sudo snap install zaproxy --classic

# Windows (Chocolatey)
choco install zap

Getting Started

Integrations

CI/CD Platforms

GitHub Actions

GitLab CI

Jenkins

Azure DevOps

Code Platforms

GitHub (SARIF)

GitLab (SARIF)

Azure DevOps (SARIF)

Vulnerability Management

DefectDojo

ThreadFix

Jira

CI/CD Integration

GitHub Actions

name: ZAP Security Scan
on:
  push:
    branches: [main]
  pull_request:

jobs:
  zap-baseline:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Start application
        run: docker-compose up -d && sleep 30
      - name: ZAP Baseline Scan
        uses: zaproxy/action-baseline@v0.15.0
        with:
          target: 'http://localhost:8080'
          rules_file_name: '.zap/rules.tsv'
          cmd_options: '-a'
      - uses: actions/upload-artifact@v4
        if: always()
        with:
          name: zap-report
          path: report_html.html

GitLab CI

zap-baseline:
  stage: security
  image: zaproxy/zap-stable
  script:
    - mkdir -p /zap/wrk
    - zap-baseline.py -t $CI_ENVIRONMENT_URL
        -g gen.conf -r zap-report.html
        -J zap-report.json || true
  artifacts:
    paths:
      - zap-report.html
    reports:
      dast: zap-report.json

ZAP pricing and licensing

ZAP is free. There are no paid tiers, no feature gates, no scan caps, and no “Pro” upsell. The full feature set ships under the Apache 2.0 license, which permits commercial use, modification, and redistribution with attribution.

Checkmarx funds development and employs the project leaders, but the funding does not change the licensing model. The codebase remains open source on GitHub, and binaries on zaproxy.org are free to download.

If you see a paid product that uses the ZAP engine, that is a third-party commercial wrapper — for example, StackHawk builds a managed CI/CD experience on top of ZAP’s scanning engine. ZAP itself, the core scanner, costs nothing.

ZAP vs Burp Suite

When to Use ZAP

ZAP is the right choice when you want capable DAST scanning without licensing costs. The automated scanning, API testing, and CI/CD integration are genuinely good — not just “good for free software.”

Good fit for:

• Teams that need DAST without budget for commercial tools (see the free DAST tools roundup)
• CI/CD pipelines needing automated security scanning with official GitHub Actions
• Security professionals learning pentesting techniques
• Open-source projects that want OSS-only tooling
• Manual penetration testing alongside automated scanning
• Organizations that want scan configuration as code (YAML automation framework)

Not the best fit if:

• You need vendor support SLAs and guaranteed response times
• You want managed scanning (enterprise tools like Invicti or Veracode DAST handle that)
• You need executive-level compliance dashboards out of the box
• Your team has no appetite for learning a tool with a steeper initial learning curve

ZAP alternatives

ZAP is not the only DAST scanner worth running. The right alternative depends on whether you need a polished commercial tool, a different free engine, or a developer-first wrapper.

• Burp Suite Professional — paid (~$475/year per user). The reference manual-testing toolkit, with a more polished UI and slightly higher detection rates in independent benchmarks.
• StackHawk — commercial managed wrapper that uses the ZAP engine under the hood. Trades flexibility for a dev-friendly YAML config and native CI/CD integrations.
• Nuclei — free template-based scanner. Fast checks for known CVEs and misconfigurations across HTTP, DNS, TCP, and SSL. Complementary to ZAP rather than a direct replacement.
• Wapiti — free Python black-box scanner. Smaller scope than ZAP but lower config burden.

For a side-by-side comparison, see the ZAP alternatives roundup and the head-to-head Burp Suite vs ZAP comparison.

History

ZAP started as a fork of Paros Proxy in 2010. Simon Bennetts, the original project lead, has said that by 2014 only about 20% of ZAP’s code came from Paros — the rest was built from scratch.

The project achieved OWASP Flagship status.

In September 2024, Checkmarx partnered with ZAP and hired all three project leaders. Checkmarx committed to keeping ZAP free and open source while providing resources for continued development.
