ZAP (Zed Attack Proxy) is the world’s most widely used open-source web application security scanner.

With 14,700+ GitHub stars, 2,500+ forks, and over 229 contributors, ZAP has earned its reputation as the go-to free DAST solution. The project is actively maintained with version 2.17.0 released in December 2025, written primarily in Java (73% of the codebase).

Maintained by a dedicated international team of security professionals and now supported by Checkmarx, ZAP provides comprehensive DAST capabilities completely free of charge.

The tool serves both beginners learning application security and professional penetration testers conducting assessments.

What is ZAP?

ZAP functions as an intercepting proxy that sits between your browser and the target application, allowing you to inspect and modify traffic in real-time.

Beyond manual testing, ZAP includes powerful automated scanning capabilities that crawl applications and test for vulnerabilities across the OWASP Top 10 and many other security weaknesses.

The tool earned OWASP Flagship Project status, reflecting its significance and maturity within the security community.

In 2024, Checkmarx partnered with the ZAP project, employing all three project leaders while maintaining ZAP’s commitment to being free and open source under the Apache 2.0 license.

Key Features

Intercepting Proxy

ZAP’s core functionality is its man-in-the-middle proxy that intercepts all HTTP/HTTPS traffic between your browser and target applications.

This enables:

Real-time inspection of requests and responses
Manual modification of parameters, headers, and bodies
Replay of requests with altered values
Recording of authentication sequences
SSL/TLS traffic decryption with installed CA certificate

Automated Spider and Scanner

ZAP’s automated scanning combines intelligent spidering with active vulnerability testing:

Traditional Spider: Follows HTML links and form submissions
AJAX Spider: Uses a headless browser to discover JavaScript-generated content
Active Scanner: Executes attack payloads against discovered endpoints
Passive Scanner: Analyzes proxied traffic for security issues without sending additional requests

API Scanning

ZAP provides dedicated support for API security testing:

# Import OpenAPI specification
zap-cli openapi -f openapi.yaml -t https://api.example.com

# Import GraphQL schema
zap-cli graphql -e https://api.example.com/graphql -s schema.graphql

# Import SOAP WSDL
zap-cli soap -f service.wsdl -t https://api.example.com/soap

Automation Framework

The Automation Framework provides a YAML-based approach to defining scan configurations:

env:
  contexts:
    - name: "Default Context"
      urls:
        - "https://example.com"
      includePaths:
        - "https://example.com/.*"
      excludePaths:
        - "https://example.com/logout.*"
      authentication:
        method: "form"
        parameters:
          loginUrl: "https://example.com/login"
          loginRequestData: "username={%username%}&password={%password%}"
        verification:
          method: "response"
          loggedInRegex: "Welcome.*"
      users:
        - name: "testuser"
          credentials:
            username: "[email protected]"
            password: "testpass123"

jobs:
  - type: spider
    parameters:
      context: "Default Context"
      user: "testuser"
      maxDuration: 5

  - type: spiderAjax
    parameters:
      context: "Default Context"
      user: "testuser"
      maxDuration: 5

  - type: passiveScan-wait
    parameters:
      maxDuration: 10

  - type: activeScan
    parameters:
      context: "Default Context"
      user: "testuser"

  - type: report
    parameters:
      template: "traditional-html"
      reportFile: "zap-report.html"

Extensive Plugin Ecosystem

ZAP’s add-on marketplace provides hundreds of extensions:

Additional scan rules for specific technologies
Import/export formats (HAR, OpenAPI, Postman)
Reporting templates
Authentication handlers
Custom scripting capabilities

Installation

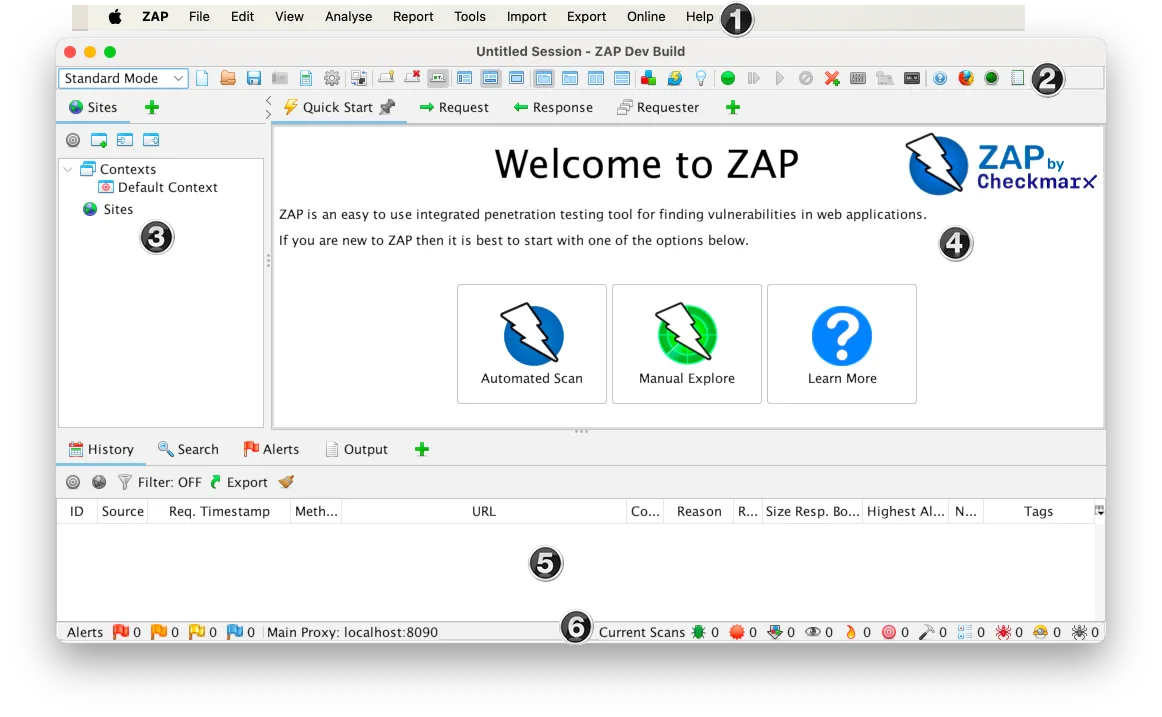

Desktop Application

Download the installer for your platform from zaproxy.org:

Windows: MSI installer or portable ZIP
macOS: DMG installer
Linux: DEB, RPM, or portable TAR.GZ

Docker

# Pull the stable image
docker pull zaproxy/zap-stable

# Run ZAP in daemon mode
docker run -u zap -p 8080:8080 -p 8090:8090 \
  zaproxy/zap-stable zap.sh -daemon \
  -host 0.0.0.0 -port 8080 \
  -config api.addrs.addr.name=.* \
  -config api.addrs.addr.regex=true

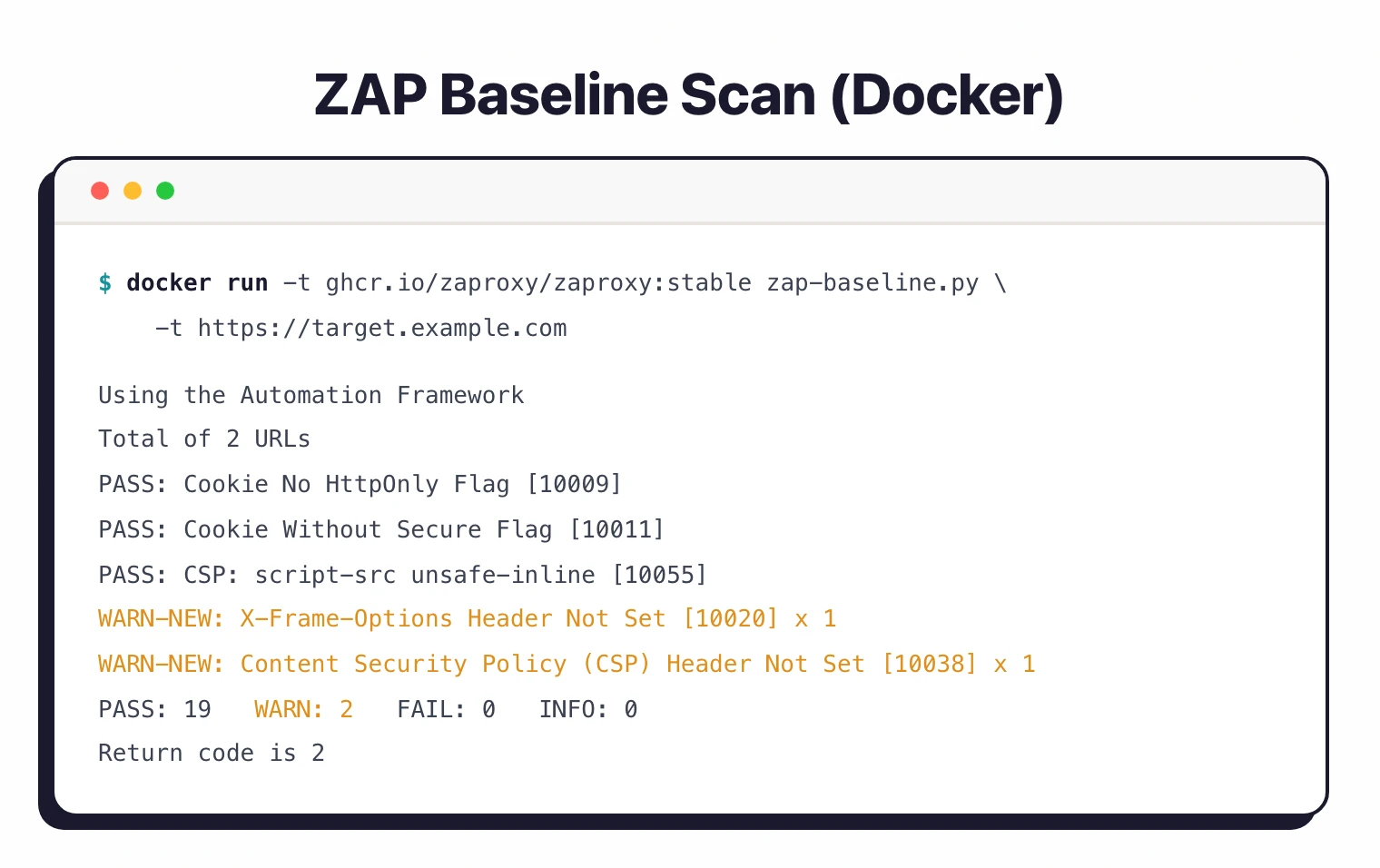

# Run a baseline scan
docker run -t zaproxy/zap-stable zap-baseline.py \
  -t https://example.com

Package Managers

# Homebrew (macOS)
brew install --cask zap

# Snap (Linux)
sudo snap install zaproxy --classic

# Chocolatey (Windows)
choco install zap

Command-Line Usage

ZAP provides several command-line scripts for different use cases:

Baseline Scan

Quick passive scan suitable for CI/CD pipelines:

# Basic baseline scan
zap-baseline.py -t https://example.com

# With report generation
zap-baseline.py -t https://example.com \
  -r baseline-report.html \
  -J baseline-report.json

# With authentication
zap-baseline.py -t https://example.com \
  -c baseline-config.prop

Full Scan

Comprehensive active scanning:

# Full scan with spider and active scanner
zap-full-scan.py -t https://example.com

# With AJAX spider
zap-full-scan.py -t https://example.com -j

# With custom configuration
zap-full-scan.py -t https://example.com \
  -c fullscan-config.prop \
  -r full-report.html

API Scan

Dedicated API security testing:

# OpenAPI scan
zap-api-scan.py -t https://example.com/openapi.json -f openapi

# GraphQL scan
zap-api-scan.py -t https://example.com/graphql -f graphql

# SOAP scan
zap-api-scan.py -t https://example.com/service.wsdl -f soap

CI/CD Integration

GitHub Actions

name: ZAP Security Scan
on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

jobs:
  zap-baseline:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Start application
        run: |
          docker-compose up -d
          sleep 30  # Wait for app to start

      - name: ZAP Baseline Scan
        uses: zaproxy/[email protected]
        with:
          target: 'http://localhost:8080'
          rules_file_name: '.zap/rules.tsv'
          cmd_options: '-a'

      - name: Upload HTML Report
        uses: actions/upload-artifact@v4
        if: always()
        with:
          name: zap-baseline-report
          path: report_html.html

  zap-full:
    runs-on: ubuntu-latest
    if: github.event_name == 'push' && github.ref == 'refs/heads/main'
    steps:
      - uses: actions/checkout@v4

      - name: Deploy to staging
        run: echo "Deploying to staging..."

      - name: ZAP Full Scan
        uses: zaproxy/[email protected]
        with:
          target: '${{ vars.STAGING_URL }}'
          rules_file_name: '.zap/rules.tsv'

      - name: Upload Report
        uses: actions/upload-artifact@v4
        if: always()
        with:
          name: zap-full-report
          path: report_html.html

GitLab CI

zap-baseline:
  stage: security
  image: zaproxy/zap-stable
  script:
    - mkdir -p /zap/wrk
    - zap-baseline.py
        -t $CI_ENVIRONMENT_URL
        -g gen.conf
        -r zap-baseline-report.html
        -J zap-baseline-report.json
        || true
  artifacts:
    paths:
      - zap-baseline-report.html
      - zap-baseline-report.json
    reports:
      dast: zap-baseline-report.json
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"

zap-full-scan:
  stage: security
  image: zaproxy/zap-stable
  script:
    - mkdir -p /zap/wrk
    - zap-full-scan.py
        -t $STAGING_URL
        -r zap-full-report.html
        -J zap-full-report.json
        -j
        || true
  artifacts:
    paths:
      - zap-full-report.html
    reports:
      dast: zap-full-report.json
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH

Jenkins Pipeline

pipeline {
    agent any

    stages {
        stage('Deploy') {
            steps {
                sh 'docker-compose up -d'
                sh 'sleep 30'
            }
        }

        stage('ZAP Baseline Scan') {
            steps {
                sh '''
                    docker run --rm \
                      --network host \
                      -v $(pwd):/zap/wrk:rw \
                      zaproxy/zap-stable \
                      zap-baseline.py \
                        -t http://localhost:8080 \
                        -r zap-baseline-report.html \
                        -J zap-baseline-report.json \
                      || true
                '''
            }
        }

        stage('ZAP Full Scan') {
            when {
                branch 'main'
            }
            steps {
                sh '''
                    docker run --rm \
                      --network host \
                      -v $(pwd):/zap/wrk:rw \
                      zaproxy/zap-stable \
                      zap-full-scan.py \
                        -t http://localhost:8080 \
                        -r zap-full-report.html \
                        -j \
                      || true
                '''
            }
        }
    }

    post {
        always {
            archiveArtifacts artifacts: 'zap-*.html, zap-*.json'
            publishHTML([
                allowMissing: true,
                reportDir: '.',
                reportFiles: 'zap-baseline-report.html',
                reportName: 'ZAP Baseline Report'
            ])
        }
    }
}

When to Use ZAP

ZAP is an excellent choice for:

Budget-conscious teams: Organizations that need DAST without licensing costs
Learning and training: Security professionals learning penetration testing techniques
CI/CD integration: Teams wanting automated security scanning in pipelines
Manual penetration testing: Security consultants conducting application assessments
Open-source projects: Projects that prefer using OSS tooling

Consider commercial alternatives if you need:

Enterprise support SLAs: Guaranteed response times for critical issues
Managed scanning: Fully managed DAST services
Advanced reporting: Executive dashboards and compliance-specific reports
Proof-based verification: Some commercial tools provide automated proof of exploitability

Comparison with Commercial DAST

Aspect	ZAP	Commercial DAST
Cost	Free	Paid
Support	Community	Vendor SLA
Updates	Community-driven	Vendor-managed
Documentation	Extensive wiki	Professional docs
Accuracy	Good	Varies by vendor
Ease of use	Learning curve	Often polished UI
Customization	Highly extensible	Vendor-dependent
CI/CD Integration	Excellent	Usually good

History

ZAP originated as a fork of Paros Proxy in 2010.

Simon Bennetts, the project lead, noted that by 2014 only about 20% of ZAP’s codebase remained from Paros, demonstrating the extensive independent development.

The project achieved OWASP Flagship status and became the most downloaded security tool on GitHub.

In September 2024, Checkmarx partnered with ZAP, employing all three project leaders (Simon Bennetts, Rick Mitchell, and Yiannis Pavlosoglou).

Checkmarx committed to keeping ZAP free and open source while providing resources for continued development and maintenance.

Note: Now branded as ZAP by Checkmarx. In September 2024, Checkmarx joined forces with ZAP and employs all three project leaders. Still free, still open source under Apache v2 license.
